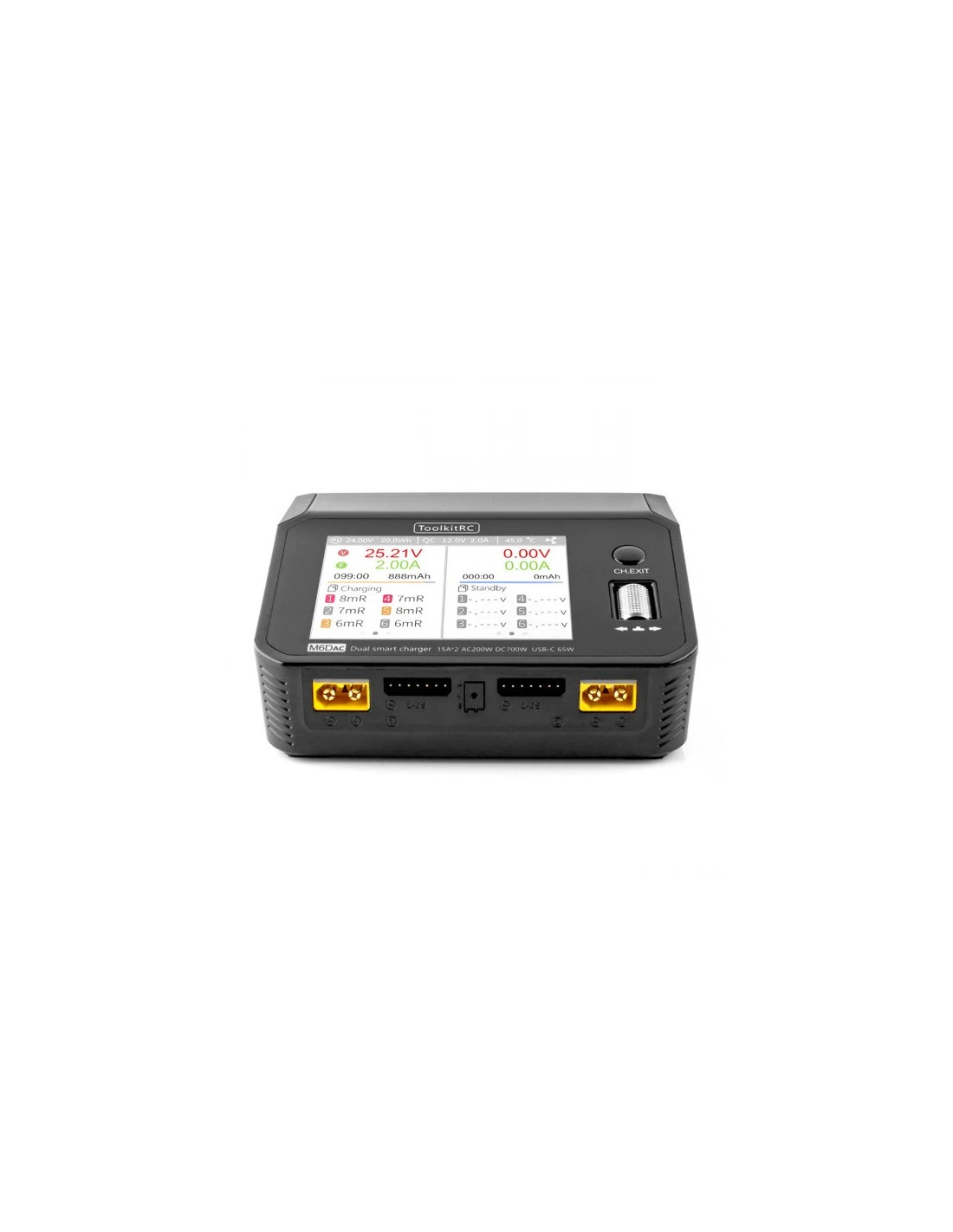

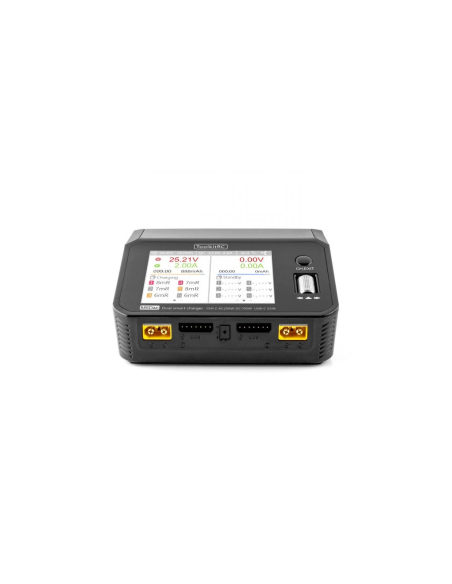

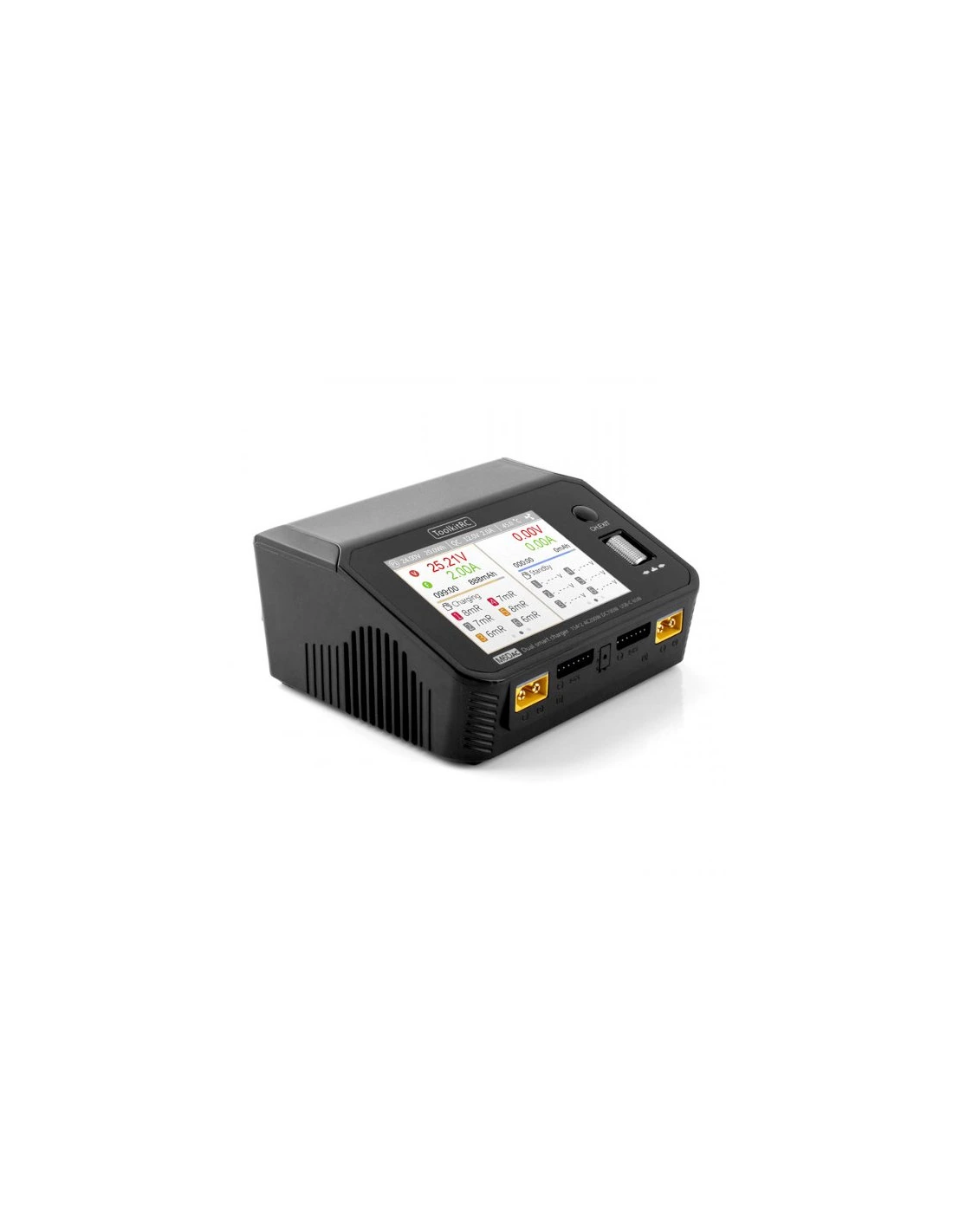

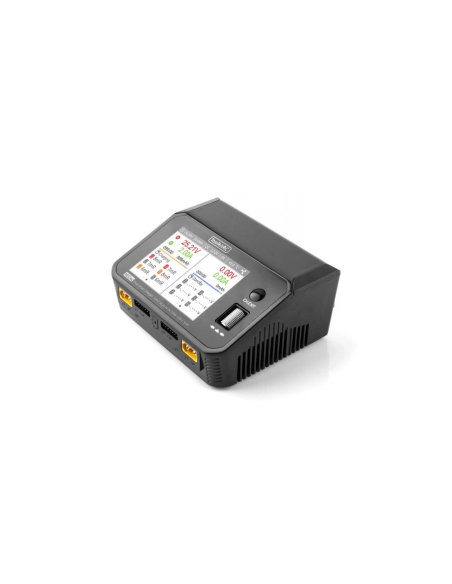

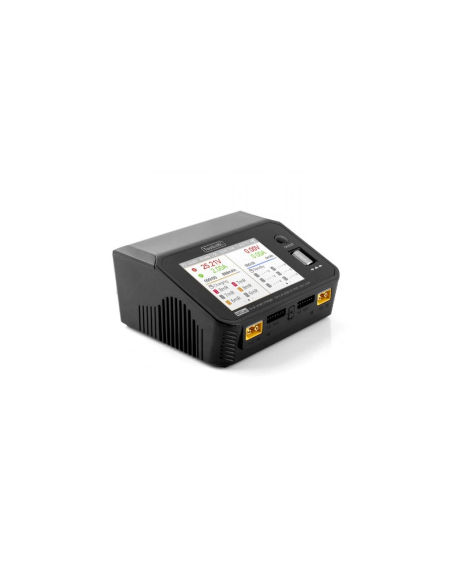

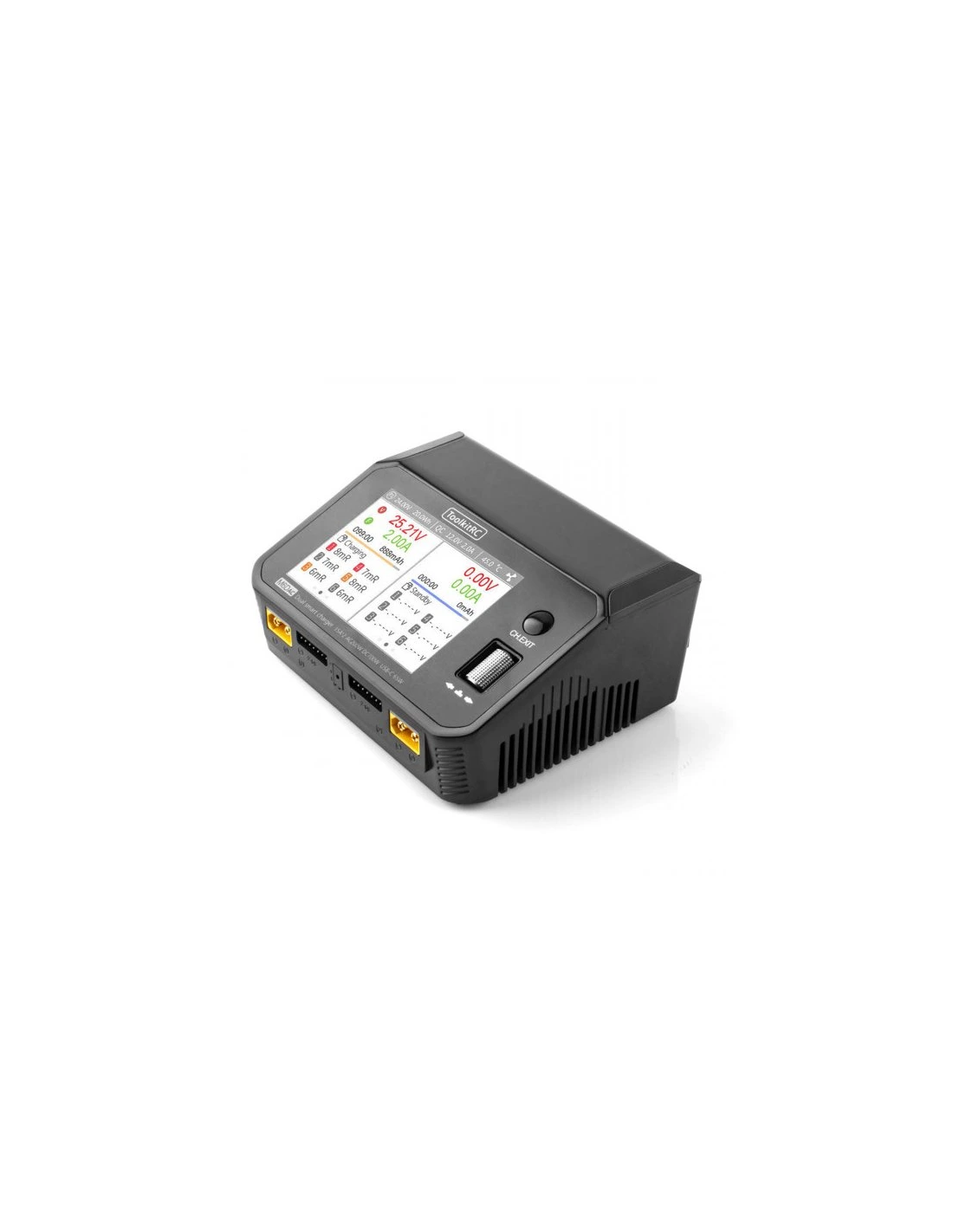

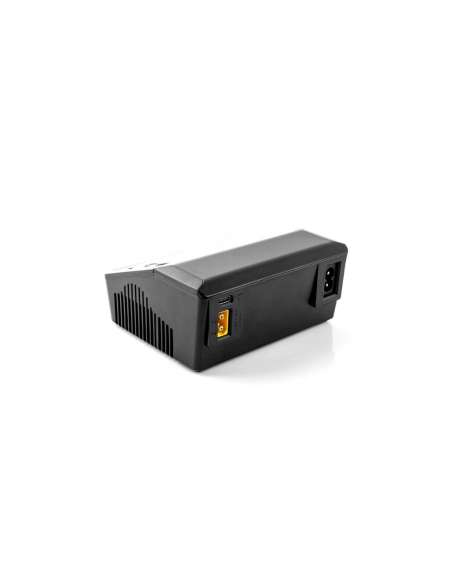

ToolkitRC M6DAC dual-channel battery charger

The ToolkitRC M6DAC dual-channel battery charger is a powerful and compact professional-grade charging solution designed for FPV drones, RC vehicles, and advanced battery management applications. Featuring both AC and DC input, dual independent channels, and up to 700 W total output, it delivers exceptional flexibility for workshop and field use.

Two independent 350 W channels allow asynchronous charging of separate batteries, or can be combined into a single synchronous channel for maximum power delivery. This makes the M6DAC equally suitable for small packs and large high-capacity batteries.

The charger supports a wide range of battery chemistries including LiPo, Li-ion, LiFe, LiHV, NiMH, NiCd, and Pb. High-precision balancing, minimal voltage deviation, and advanced diagnostics such as internal resistance measurement ensure safe and battery-friendly charging.

A bright 3.5-inch IPS LCD display provides a clear and intuitive user interface, while the integrated USB-C output allows the charger to function as a high-power supply for laptops and other devices.

Technical specifications

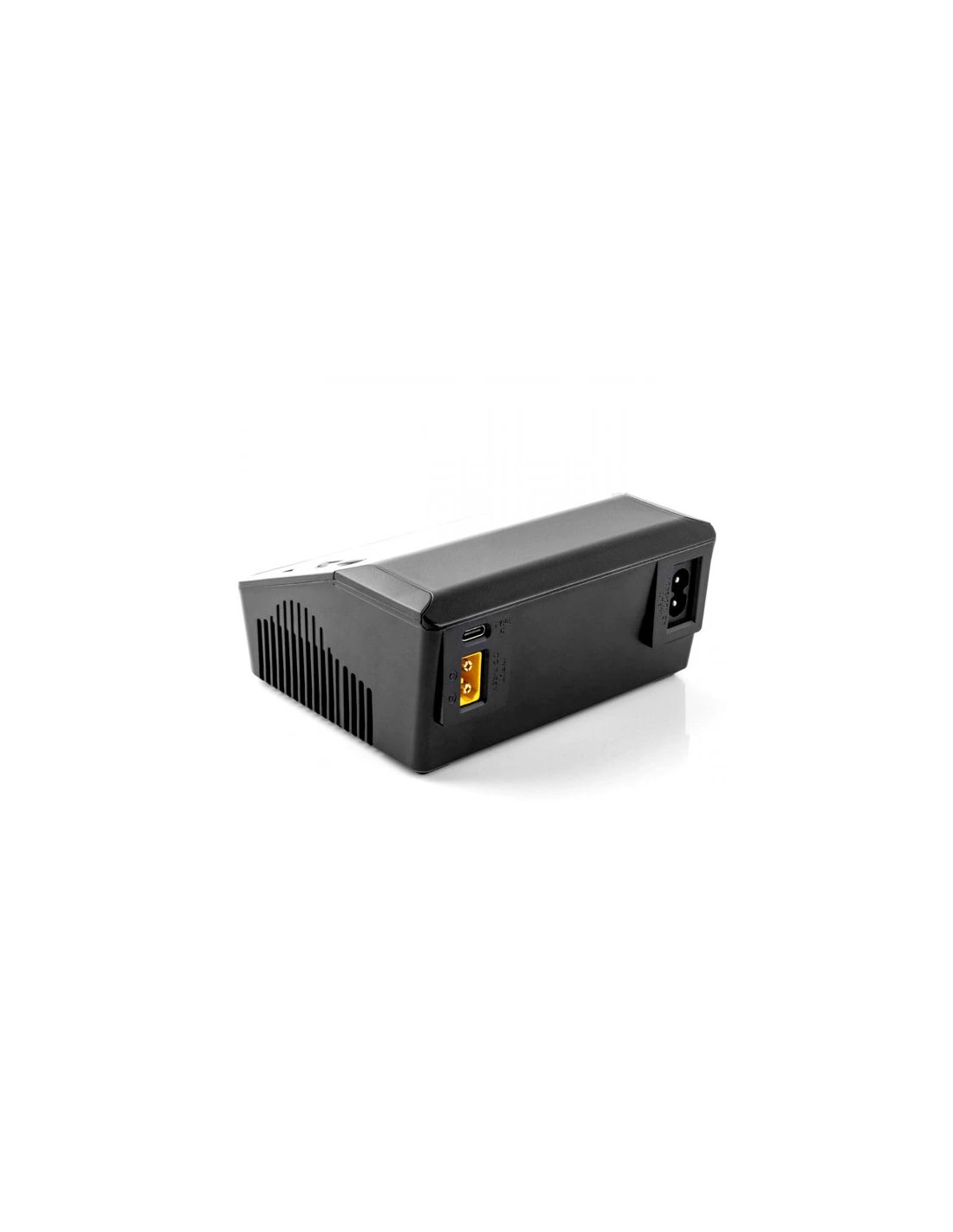

• Input voltage: DC 7.0–28.0 V (max 30 A) / AC 100–240 V (max 2.5 A)
• Charge power: 2 × 350 W (asynchronous) / 700 W (synchronous)
• Charge current: 0.1–15 A ×2 / up to 25 A (synchronous)
• Discharge power: up to 200 W (Recycle), 15 W (Normal)
• Supported batteries: LiPo / LiFe / LiIon / LiHV (1–6S), NiMH / NiCd (1–16S), Pb (1–10S)
• Balance current: up to 1000 mA (2–6S)
• Balance accuracy: < 0.005 V
• USB-C output: up to 65 W (PD, QC, AFC, FCP, SCP, PE, SFCP, VOC)
• Display: 3.5” IPS LCD (480 × 320)
• Dimensions: 127 × 106 × 57 mm
• Weight: 520 g

Key features

• Dual-channel charging with up to 700 W total power
• AC/DC input for maximum versatility
• Wide battery chemistry and cell support
• High-precision balancing and diagnostics
• USB-C PD output up to 65 W
• Compact and durable design

ToolkitRC M6DAC – ultimate control, power, and flexibility for professional battery charging.
